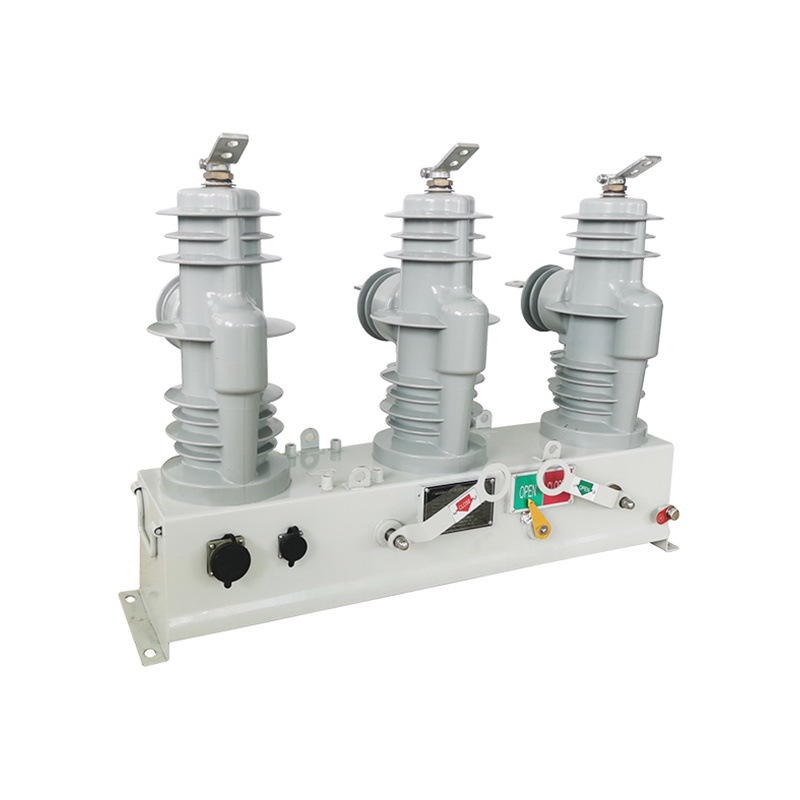

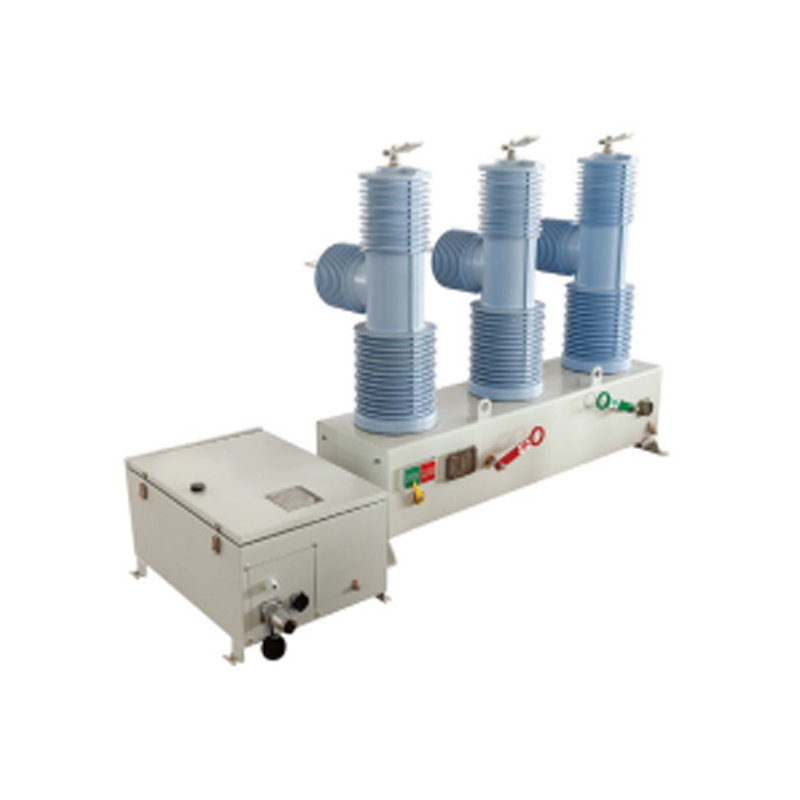

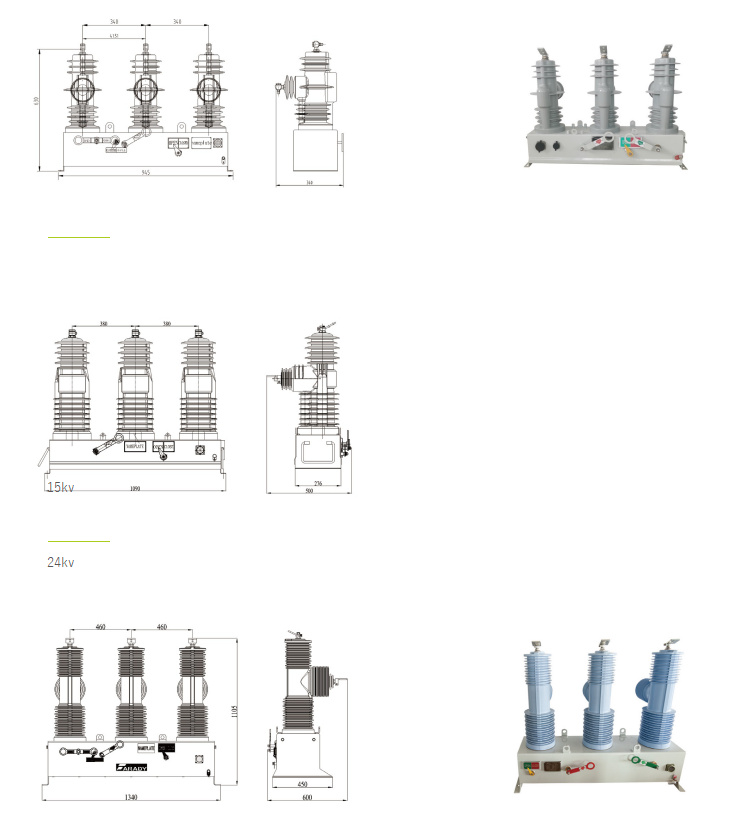

FAR series 15KV/27KV/38KV AUTO Circuit Recloser

Farady Electric strives to bring our customers the latest technology and competitive pricing and best service for pole mounted Auto circuit recloser.

The FAR series Auto circuit recloser can use on overhead distribution lines as well as distribution substation applications for all voltage classes 11kV up to 38kV at 50/60HZ power system. And its rated current can reach 1600A.

A. Air temperature: Maximum temperature: +85℃; Minimum temperature:-45℃.

B. Humidity: Monthly average humidity 95%; Daily average humidity 90% .

C. Altitude above sea level: Maximum installation altitude: 2500m or more higher.

D. Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

E. No frequent violent shake.

1. High quality Solid Epoxy resin material

2. Fully comply with ANSI std

3. Guarantee 30,000 times operation Environment friendly , Oil / SF6 Gas free

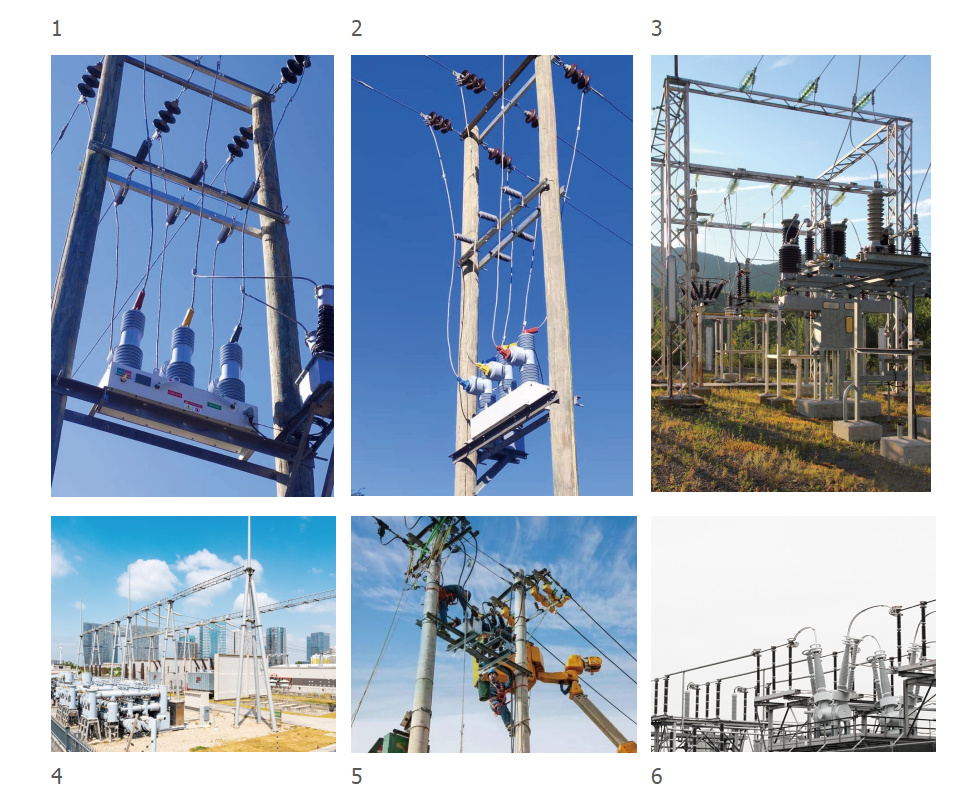

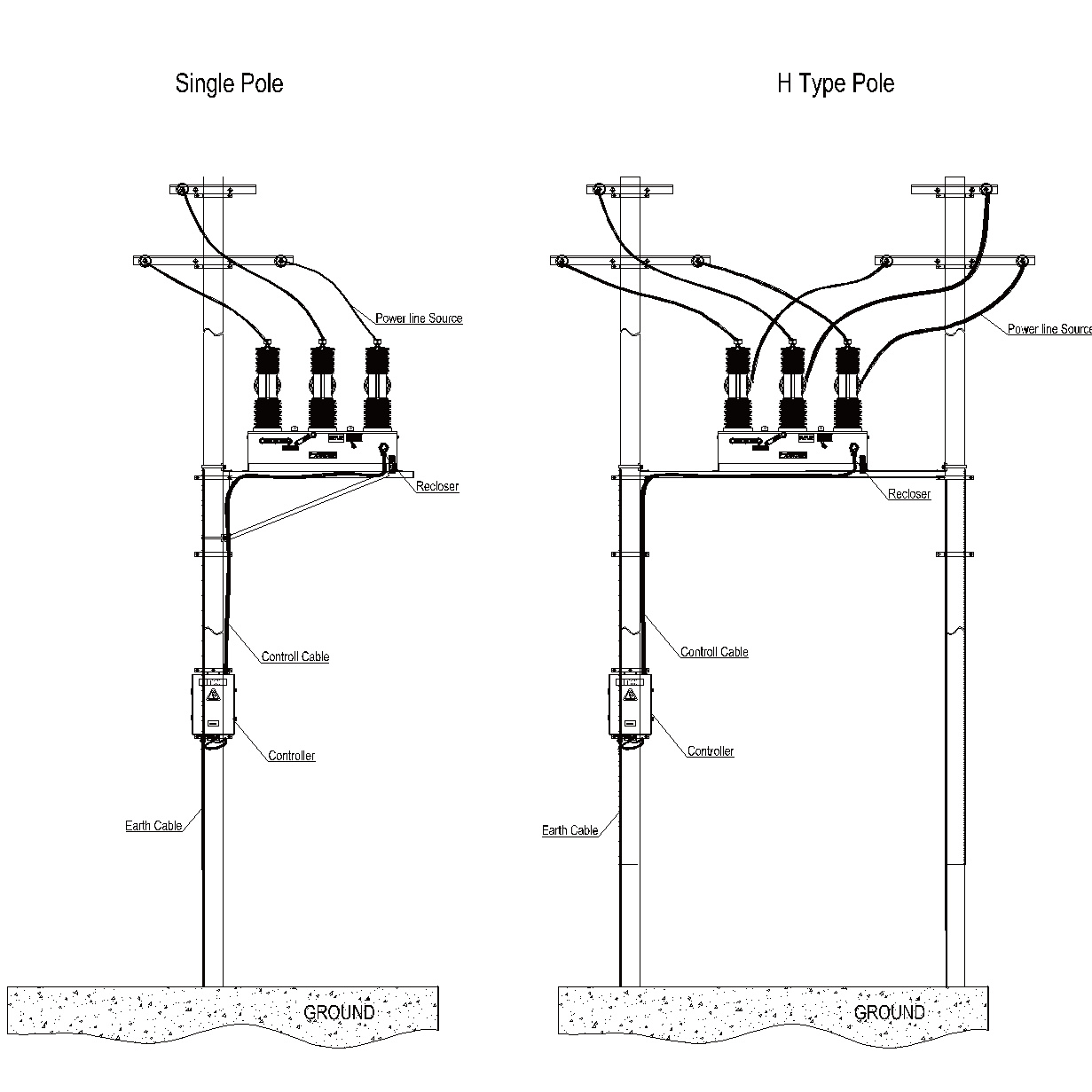

4. Suitable for both Pole mounted or Substation available

5. Reliable and Enhanced Life Expectancy

6. Ambient temp: -40℃~80℃

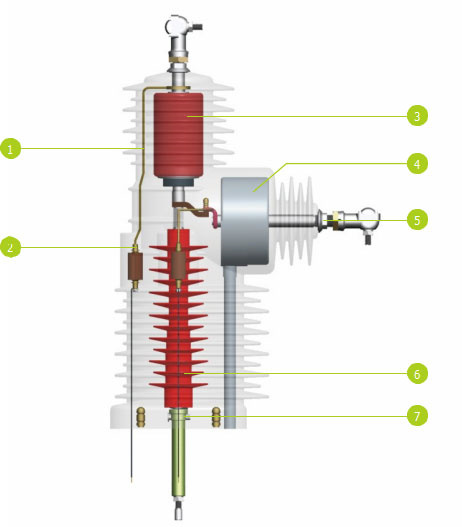

1. High quality Vacuum Interrupter

2. Voltage sensor Integrated

3. CT Integrated

4. Reliable Push rod

5. Minimized moving components

6. Maintenance free design

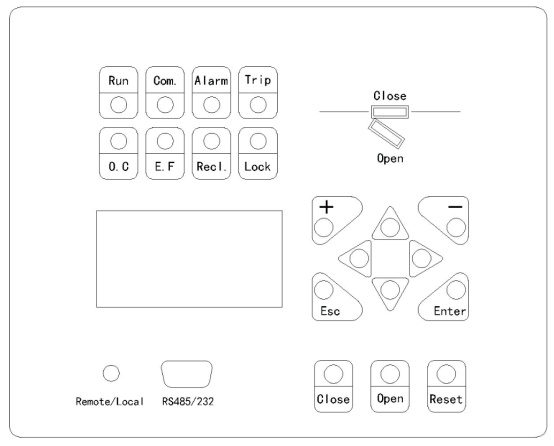

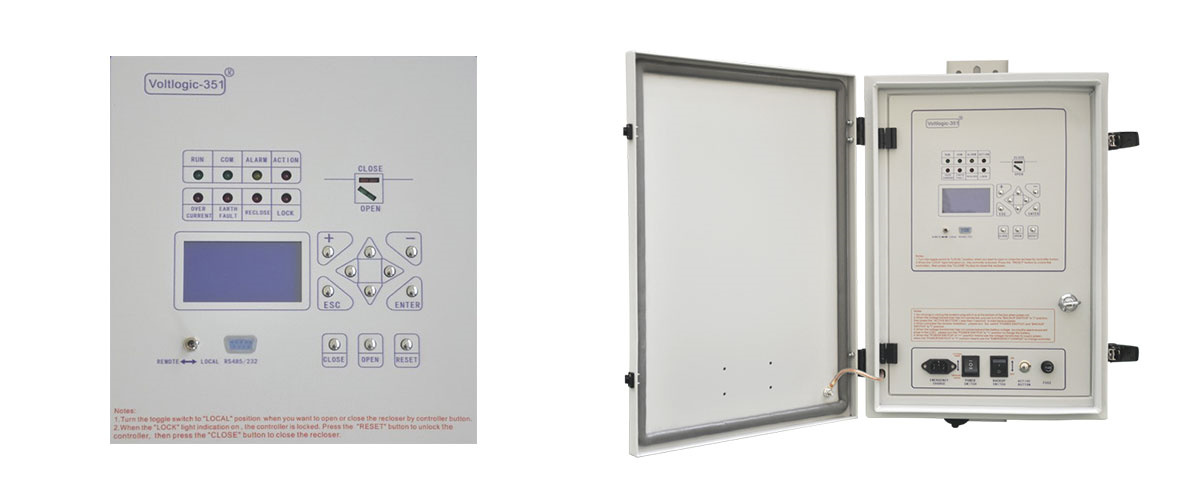

1.Voltlogic-351 series recloser controller is medium voltage overhead line grid monitoring unit, It can combined with vacuum circuit breaker for achieve of automatic reclose, measure monitoring, fault analysis and event records. It gives us a safety power grid for cutting line fault and automatic recovery operation and power automation.

2.The controller is suitable for up to 38kV outdoor switchgear using, include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers.

3.The controller is gathering with line protection, control, measurement and monitoring of voltage and current signals integrated automation and control devices outdoors.

4.The controller is a automatic management unit for single way/multi ways/ring network/two power sourcing, provided with all voltage and current signals and all functions.

5.The controller column switch intelligent controller supports:

Wireless (GSM/GPRS/CDMA), Ethernet mode, WIFI, optical fiber, power line carrier, RS232/485, RJ45 and other forms of communication, and can access other station premises equipment (such as TTU, FTU, DTU, etc.).

1.Phase current IA, IB, IC RMS, Zero Sequency

2.Voltage Uab,Ubc,Uca,U0

3.Active power, reactive power and power factor

4.Frequency

A.Protection configuration is complete, and all protection functions can be switched on and off fiexibly.

B.6 channels signal input.

C.4 channels current measure.

D.4 channels voltage measure.

E.Large capacity flash memory can record at least 100 times of historical events, and no data will loss even the power is off.

F.Circuits operating loop can be used both the direct or alternating current, self-adaptation open/close brake function, which can co-work with various of breakers, and the operation is simple and reliable.

G.The device has complete self-inspection function to in-service monitor the working conditions of various parts of the device, ensuring the reliability of the device.

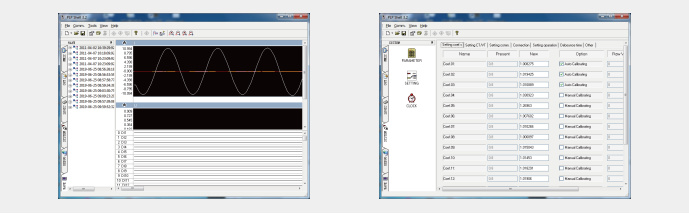

A.Trip logs

B.SOE logs

C.Alarm Logs

1.RS485, RS232 port and Ethernet

2.Protocols -IEC60870-5-101, IEC60870-5-104 IEC61850 or Modbus RTU,DNP3.0
