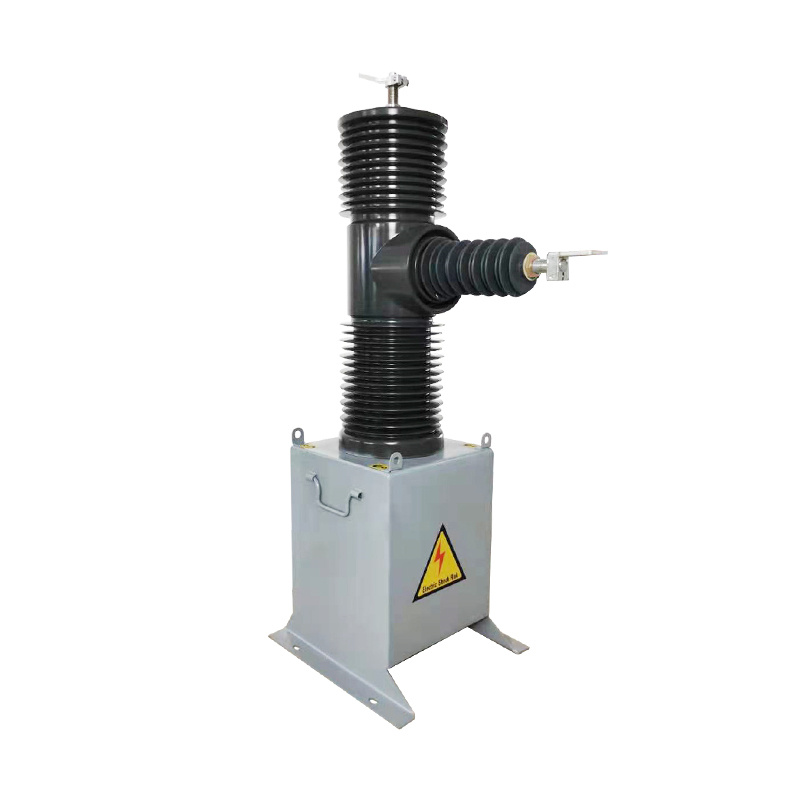

FCS series 15/27/38kV Single/Three Phase Capacitor Switch
The Farady's new generation FCS capacitor switch is a special electrical field design on vacuum interrupter and switch body insulation for switching capacitive current. Integrated with single or three phase pole mounted capacitor bank to be reactive power compensation.
General
With long mechanical and electrical life design can provides an operational life of over 100,000 maintenance-free operations.
Using the FCS will result in substantial savings from reduced maintenance and maximized bank uptime and will also improve Power Quality.
The FCS all comply with relative standard ANSI C37.66/IEC622771.
Service Condition
Ambient temperature: -40℃~+85℃, day temperature difference:25℃;
Altitude: Below 2000m(special condition pls contact Farady Technical);
Wind speed no exceeds 35m/s;
No normally intensity vibration
No intensity erosion gas, medium place (for example acid, alkali, smother eg.)
Pollution class: IV class;
Charge temperature-40℃~+85℃.
Feature
With optional choice by Normal type and magnetic actuator mechanism.
 |
This advanced design monostable type magnetic actuator. With mechanical life 100,000 times. Intelligence capacitor switch controller |
| Magnetic actuator operate mechanism | |
|
Spring mechanism available |
| Manual trip/Close | Can be manual trip by hook sticker. |
| Open/Close indicator | Visible from ground |
With optional classes for rated current range:
For 15/27/38kV, with 630A, Max 50kA making capacity. Normal current 1250A is optional.
With optional communication protocols & l/O port for user choice:
RS-232 and RS-485 ports supporting.
Modbus communication protocol is optional(*need special order)
IEC 60870-5-101 communication protocol support.
The Capacitor switch can communicate through GPRS(Or GSM) modem with English(need
*special order)
Note:(*)mean should customized by manufacturer if needed.
Accessories of FCS
 |
|
|
| Upper terminal Insulator cover 3 pcs/set | Lower terminal Insulator cover 3 pcs/set | Lower expanding bushing 3 pcs/set |
|
|
|
| Upper terminal 3 pcs/set | Lower terminal 3 pcs/set |
Note: Standard made of T2 copper material, for 630A rated current using. With expanding range.
Main new advantages of FCS capacitor switch
Note:

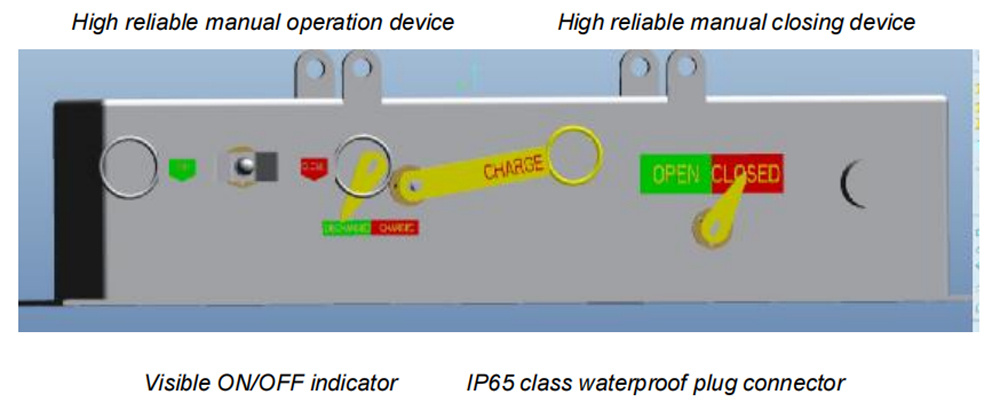

Farady Supply special design manual closing device technology with own patent, It applied for normal and abnormal situation closing. Its closing speed(time) comply with IEC62271-100.
This function can offset from magnetic actuator fault which when actuator can't work will cause the major accident.

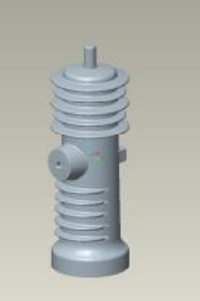

Primary incomer terminal (directly connect to interrupter reduce power lost)
Vacuum interrupter (with APG technology with external silicone rubber mold pressure covering, increasing the whole insulation and weathering performance)
Outlet bushing (external modular design easy for quality control and maintenance)
Apply ANSOFT design the high-performance magnetic actuator, high reliable and free maintenance. Through 35,000 times opening reverse excitation test, the demagnetization rate less than 1%.
Note:
Farady supply special patent modular design mono-stable type magnetic actuator with two coils controlling. Its the best design for vacuum FCS caps witch.
Creepage Distances of FCS capacitor switch
| Description | 15kV BIL 90kV | 27kV BIL 150kV | 38kV BIL 170kV | 38kV BIL 200kV |
| T to T* | 470 | 840 | 1140 | 1250 |
| T to G/E* | 500 | 1020 | 1200 | 1300 |
Note:
T to T* ------Terminal to terminal creepage
T to G/E* ------Terminal to ground/earth creepage
This figure does not include lower expanding bushing

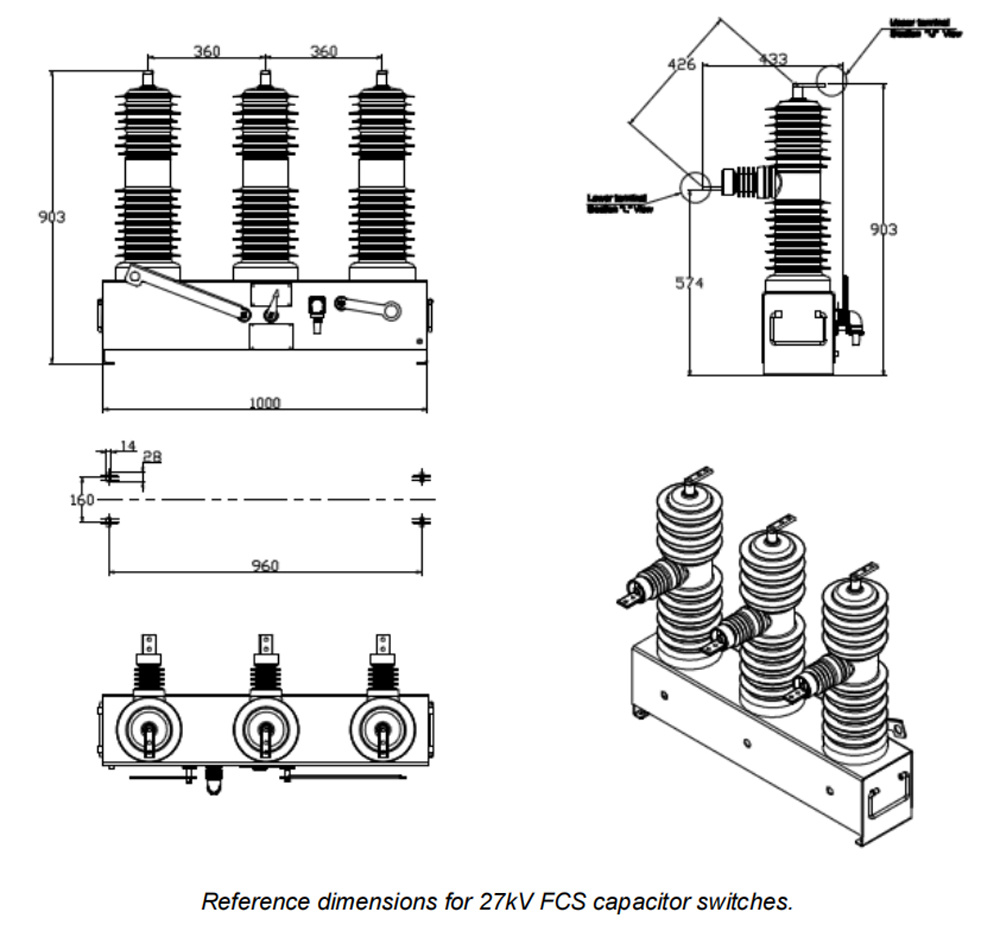

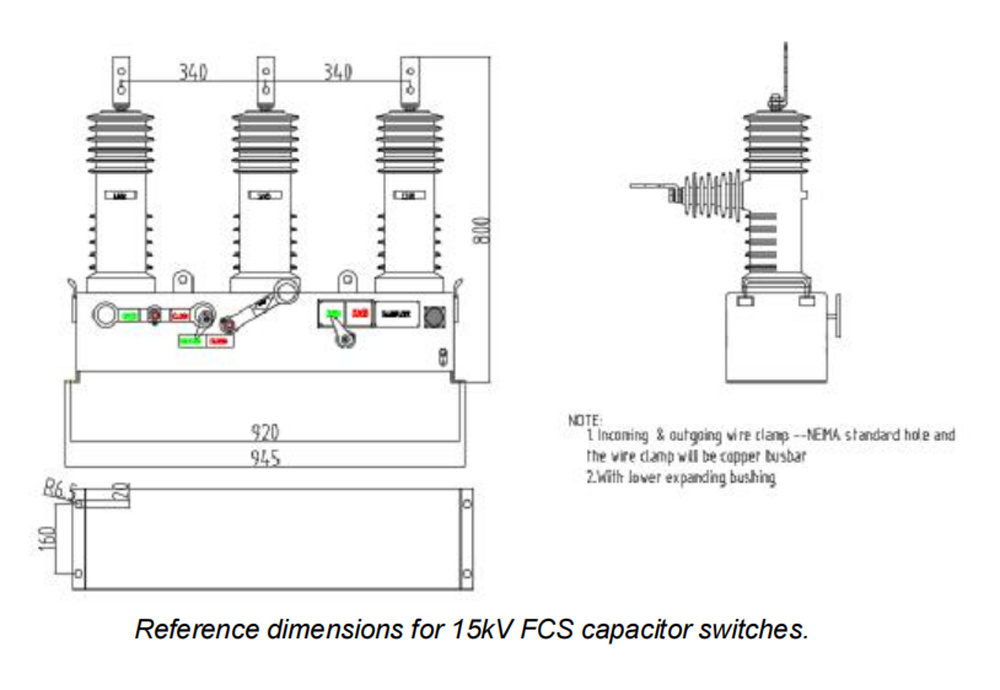

Outline & Sizes for FCS
Capacitor switch controller features
 |
Specification of components: 1,ON&OFF signal light ON signal light red color, OFF light Green. Power from inner controller. 2,Alarm(fault)light Yellow color. Power from inner controller Power from inner controller. Power from inner controller. 3,Open&Close push button Open push button Green color. Close push button Red color. Power from inner controller. Note: For remote controlling can set additional circuit loop,power from outside.detail see secondary diagram. 4,Batteries, 2pcs 12Vdc,7AH/pcs Close push button Red color. Power from inner controller. 5,Capacitor,1pcs 250Vdc, 22000uF. 6,MCB, 2poles 1pcs, 1poles 1pcs. AC220Vac, 16A. for protection and switching. 7,Power inverter, capacitive battery/1pcs. Capacitive type, 24Vdc exchange to 250Vdc. Battery inverter accordingly outside power. 8,Intelligence control device 1pcs. For switching controlling coils. 9,Rotate switch,220Vac 1pcs. Control for remote circuit or local circuit. 10,Auxiliary switch contacts Backup for clients. 220Vac, 10A. Note: Others pls contact with Farady's Engineers. |
| Offering: 1,ON/OFF signal light 2,Alarm(fault) light 3,Open&Close push button 4,Batteries 5,Capacitor 6,MCB 7,power Inverter 8,Intelligence Control device 9,Rotate switch 10,Auxiliary switch contacts 11,Cable connector 12,Terminals 13,Others |
Note: (*) Standard equipped with only terminal or ON/OFF controller, special design must be customized.

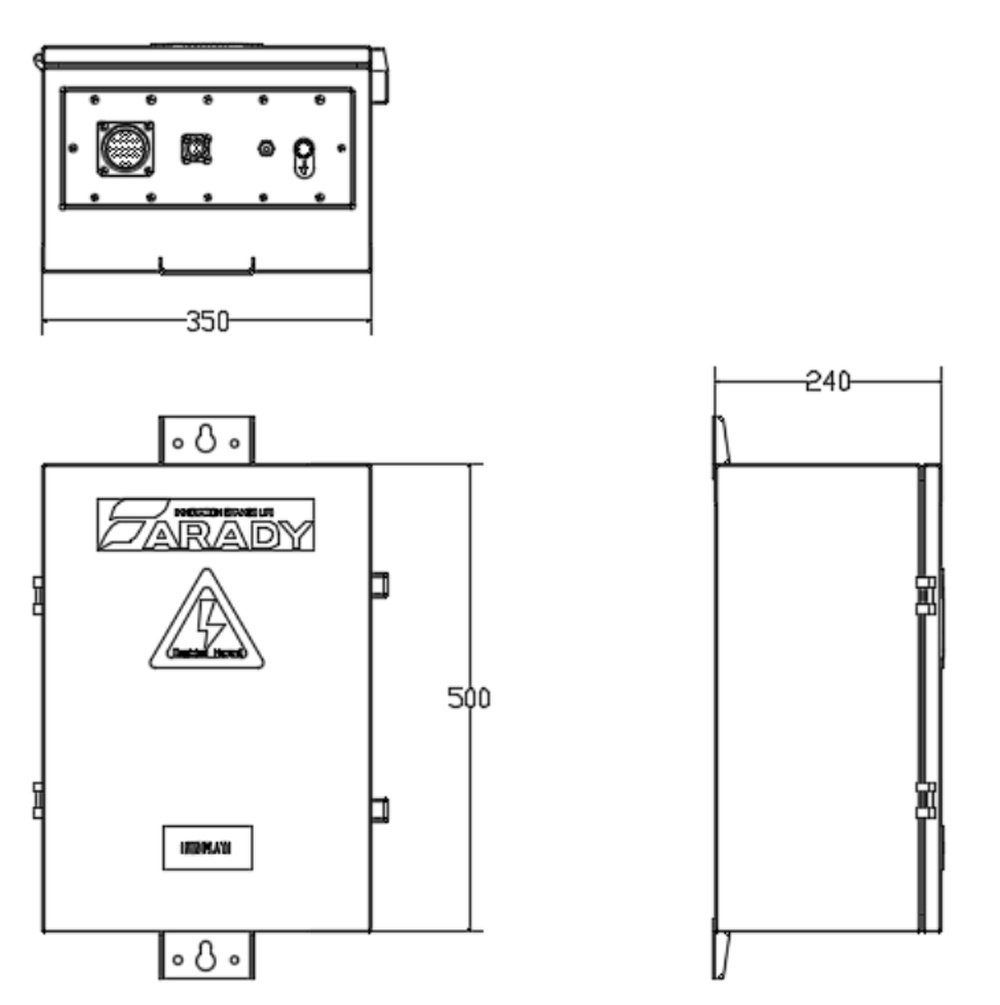

Outline & Sizes for FCS capacitor switch controller
Main technical parameter
Main technical data of the FCS
| No. | Item | Unit | Data | |
| 1 | Rated voltage | KV | 15/27/38 | |
| 2 | Rated current | A | 200 up to 630 | |
| 3 | Rated frequency | HZ | 50/60 | |
| 4 | Power frequency 1min | Dry | KV | 50/70/95 |
| Wet | 45/65/80 | |||
| 5 | Lightning impulse withstand voltage(peak value)alternate,opposite/fracture | KV | 110/150/170/200 | |
| 6 | Rated short circuit breaking current | KA | 12.5/16/20 | |
| 7 | Symmetrical fault-making current | KA | 12.5/16/20 | |
| 8 | Rated peak value withstand current | KA | 31.5/40/50 | |
| 9 | Symmetrical short time withstand current | KA | 12.5/16/20 | |
| 10 | Rated operating circulates | O-0.3S-CO-3S-C (3S minimum) | ||
| 11 | Single capacitor breaking | A | 630 | |
| 12 | Back to back capacitor bank breaking | A | 400 | |
| 13 | Mechanism life | times | 10,000/100,000 | |
| 14 | Secondary loop 1 min power frequency withstand voltage | KV | 2 | |
| 15 | Auxiliary voltage | V | 240 AC/DC | |
Note:(*)is meant special for optional. When needed should discuss with our engineer.
Exceeds Electrical Requirements of ANSI C37.66
