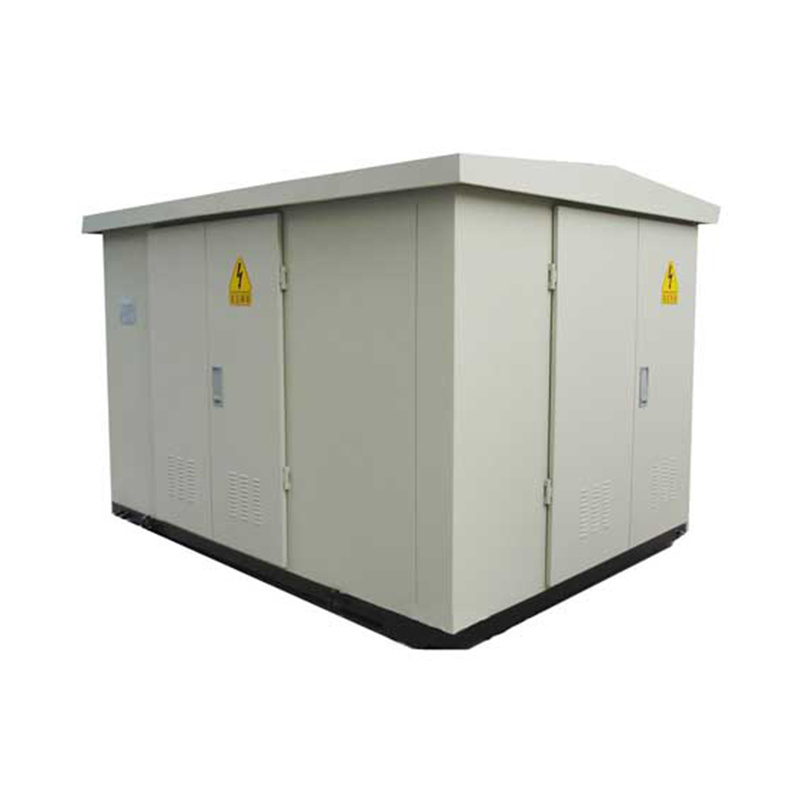

YBW series Substation Complete Equipment Products

This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.

Standards: IEC60076, IEC1330, ANSI/IEEE C57.12.00 ,C57.12.20 ,C57.12.90,BS171,SABS 780

a) Both indoor or outdoor

b)Air temperature:

Maximum temperature: +40℃; Minimum temperature:-25℃

c) Humidity:

Monthly average humidity 95%; Daily average humidity 90% .

d) Altitude above sea level:

Maximum installation altitude: 2000m.

e) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

f) No frequent violent shake

Note: *The above parameter is only subject to our standard design, special requirement can be customized

Two types of box type transformer substation,corridor type and non-corridor type,welded frame by excellent.

Anticorrosive steel,hot-galvanizing steel base:

Box-type transformer substation has 3 rooms,HV cabinets,LV,cabinet,transformer cabinet,layout may be customized.

Two layer roof with air inside to prevent temperature rising efficiently.

Natural air cooling,optional forced air cooling,optional automatic anti-congeal equipment.

Difference type of load switch and fuse combination to protect the transformer.

Terminal power supply,ring supply and double power supply welded body of LV cabinet ,screen type nameplate.

Cabinet is secured to the tank.
