Pad Mounted Transformer

Model Series

Pad Mounted

Rated Voltage

2.5～34.5kV

Standard

 IEEE C57.12.34

Warranty

Two years

Application

Outdoor/Indoor
    Contact us Download
    product details
    Technical Parameters
    Resources
    Farady Three Phase compartmental type pad-mounted transformers are utilized in underground distribution systems. They are particularly suitable for high-rise buildings, apartment complexes, shopping malls, hospitals, schools, commercial structures, and industrial facilities.

    product-icoGeneral

    The standard rating for these transformers ranges from 10 to 167 KVA for single phase, and 45 to 3000 KVA for three phase, with primary voltage ratings ranging from 2,400V to 34,500V. The design of these transformers adheres to the relevant standards set by ANSI/IEEE and NEMA.

    product-icoProduct View and Features

    ●ANSI/IEEEC57.12.34
    ●Single or Three phase
    ●DOE2016 or NEMA TP1 Efficiency
    ●Indoor or outdoor
    ●Wound core-coil construction
    ●Robust steel tank and cabinet assembly
    ●Dear or live front
    ●3 points door locking
    ●Standard NEMA accessories
    ●All standard tap configurations
    ●Dual voltage available
    ●Corrosion tank protection

    product-icoQuality Assurance

    Quality assurance is an integral part of the process. All electrical testing is per IEEE standards.. Quality of processed parts and subassemblies are the responsibility of the production personnel. Regular quality inspections and spot checking are conducted to make sure that good and consistent quality is achieved and maintained.
    Routine Tests
    ●In-process Core Loss Test
    ●Transformer Turns Ratio Test
    ●Winding Resistance Test
    ●Polarity and Phase Displacement Test
    ●Insulation Power Factor Test
    ●Liquid Insulation DBV Test
    ●No Load Loss & Excitation Test
    ●Impedance Voltage & Load Loss Test
    ●Voltage Ratio Test
    ●Applied Potential Test
    ●Induced Potential Test
    Type Tests
    ●Temperature Rise Test
    ●Basic Impulse Level (BIL)

    product-icoAccessories

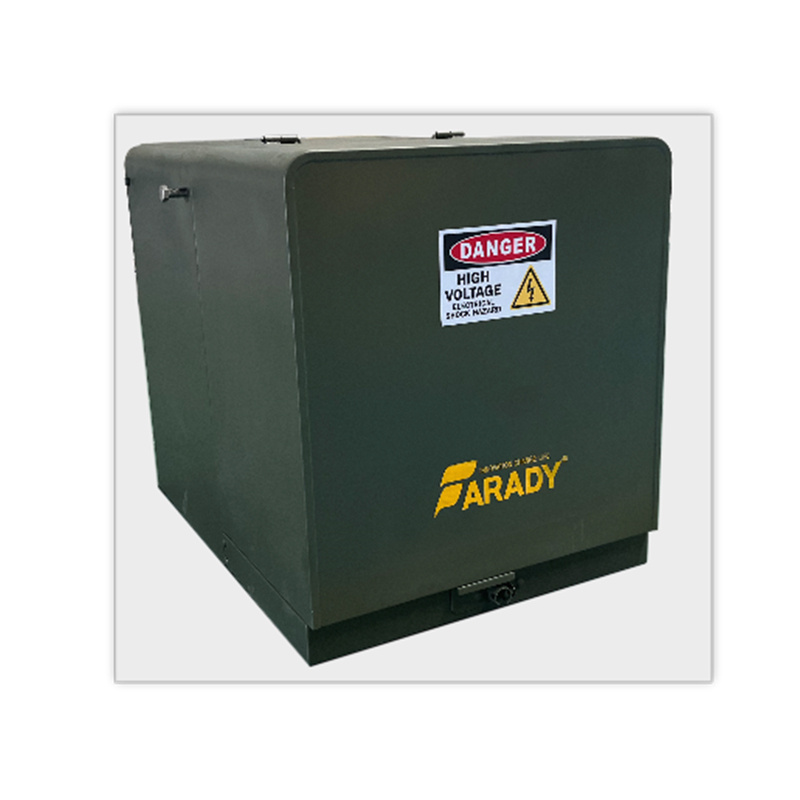

    YS Series Three Phase Pad Mounted Transformer03  YS Series Three Phase Pad Mounted Transformer04  YS Series Three Phase Pad Mounted Transformer05  YS Series Three Phase Pad Mounted Transformer06

    Bushing insert

    Bayonet fuse holder

    Bushing well

    NEMA bushing

    product-icoTypical Product Outline

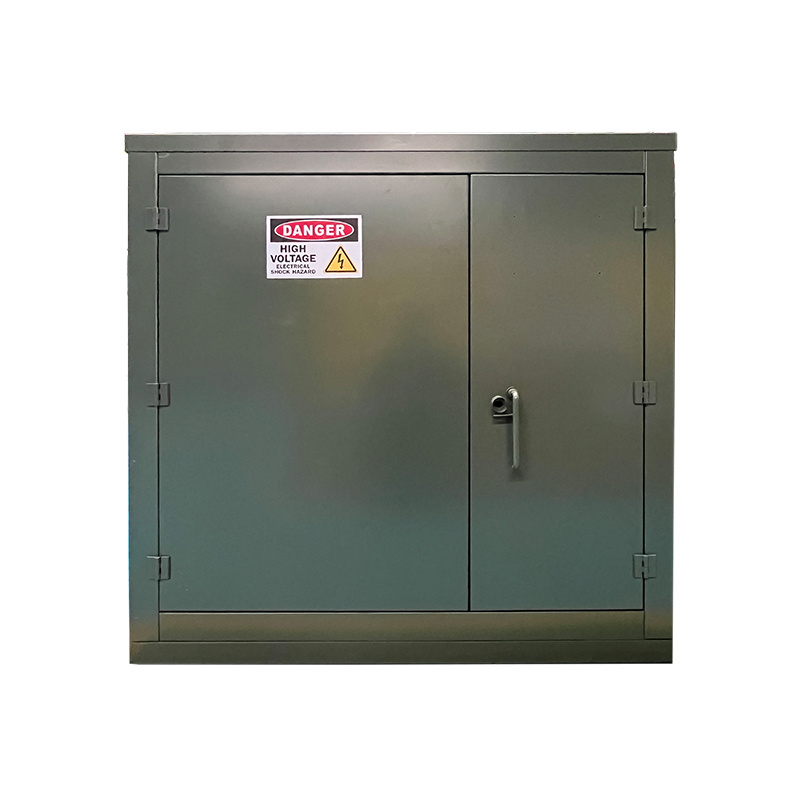

    YS Series Three Phase Pad Mounted Transformer01

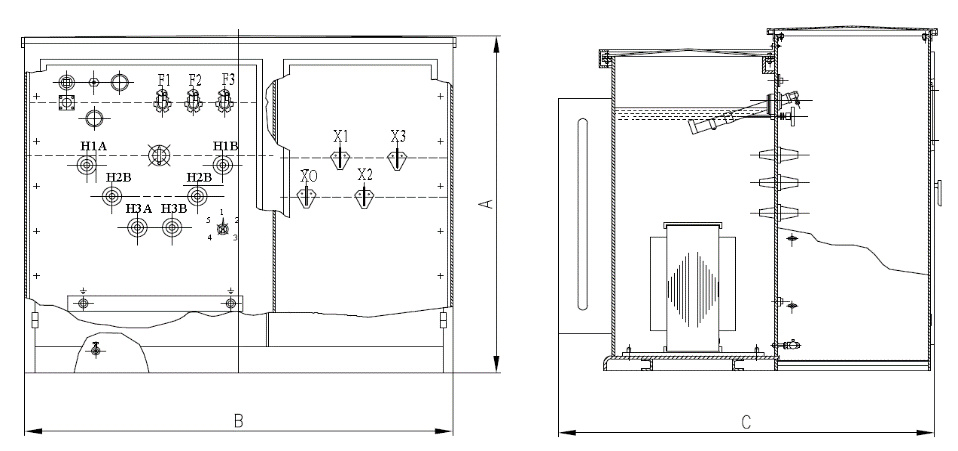

    Table of Liquid Three phase pad mounted transformer (<150kV BIL) Temp rise 65℃
    kVA A B C Weight Efficiency %
    mm mm mm (kG) DOE 2016 NEMA TP1
    45 1300 1750 1200 1150 98.92 98.60
    75 1300 1750 1200 1200 99.03 98.70
    112.5 1300 1750 1200 1250 99.11 98.80
    150 1300 1750 1200 1300 99.16 98.90
    225 1300 1750 1200 1600 99.23 99.00
    300 1300 1750 1450 1900 99.27 99.00
    500 1300 1850 1450 2600 99.35 99.10
    750 1400 1850 1450 3300 99.40 99.20
    1000 1400 1850 1450 4400 99.43 99.20
    1500 1650 1850 1680 5500 99.48 99.30
    2000 1650 2350 1750 6500 99.51 99.40
    2500 1750 2350 1800 7900 99.53 99.40
    YS Series Three Phase Pad Mounted Transformer02

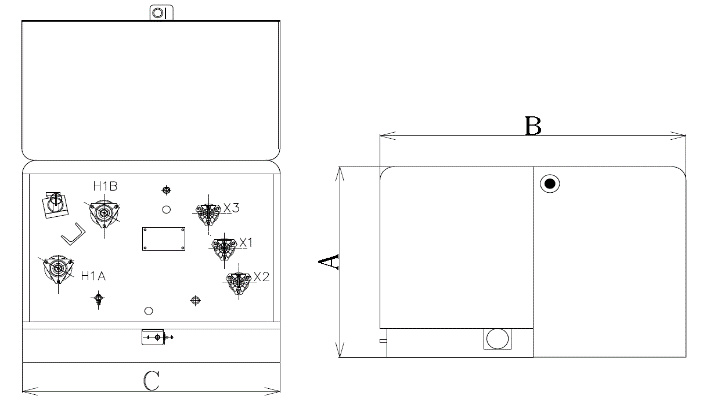

    Table of Liquid Single phase pad mounted transformer (<150kV BIL) Temp rise 65℃5℃
    kVA A B C Weight Efficiency %
    mm mm mm (kG) DOE 2016 NEMA TP1
    10 610 750 850 280 98.70% 98.40%
    15 610 750 850 300 98.82% 98.60%
    25 610 750 850 330 98.95% 98.70%
    37.5 610 750 850 350 99.05% 98.80%
    50 610 750 850 370 99.11% 98.90%
    75 610 750 950 400 99.19% 99.00%
    100 750 950 1000 450 99.25% 99.00%
    167 750 1200 1000 700 99.33% 99.10%
